Universal H-Series Heater 200,000 BTU - Propane Gas, Low NOx

Hayward

SKU: H200FDP

The Universal H-Series is an energy efficient, high performance, installation adaptable commitment to the pool service professional.

Replacement SKU: HS200FDP

Features

Hayward Universal H-Series gas heaters are the “universal” energy efficient remedy for any new or existing pool or spa. An industry-leading hydraulic design reduces circulation pump run time to provide energy savings of up to 18% when compared to less efficient competitors. The energy efficiency of the Universal H-Series gas heater combines with environmentally friendly low NOx emissions, a standard cupro nickel heat exchanger, and ultimate installation flexibility to responsibly heat a pool or spa today and for years to come.

Features and Benefits

  • Standard cupro nickel heat exchanger
  • Excellent salt water and chemical corrosion resistance
  • Exclusive "Totally Managed" cupro nickel heat exchanger water flow
  • Same water velocity through all tubes for faster heating
  • Patented header by-pass design
  • Reduction in pump run-time results in significant cost savings
  • 2" x 2 1/2" CPVC union plumbing connections
  • Forced draft system constantly moves air through the combustion chamber at a precise flow rate, eliminating the need for a high-wind stack
  • Low NOx emissions - meets clean air quality standards

NOTE: Hayward Universal H-Series heaters meet or exceed the South Coast Air Quality Management District (SCAQMD Rule 1146.2) Low NOx emissions standards in all Low NOx areas that apply the SCAQMD standard.

  • EXPERT LINE products can only be purchased through your local pool professional or in-store.  Exclusions, other terms, and conditions may apply.
  • 3+ Year Parts and Labor Warranties*

*When sold by a Hayward Rewards® partner. Exclusions, other terms and conditions may apply.

Active Defrost No
Application New Construction, Renovation, Aftermarket
Boost Mode No
Brand Hayward
Channel Expert Line
Circuit Amps 5.5
Compressor Speed N/A
Cooling Capability No
Fuel Type Propane (LP)
GTIN 610377083645
Heating Capacity (BTU/hr) 200,000
Hertz - Heaters 60 Hz
Kilowatts 59 kW
Warranty - Labor 1-year
Low Ambient Operation Yes
Master Carton Qty 1
Maximum Breaker Size (Amps) 15
Minimum Operating Temperature 40 °F
Pallet Qty 1
Warranty - Parts 3-year
Phase - Heaters 1
Pool Type In Ground
Product Dimensions 24 " x 22 " x 29.5 "
Product Height 24 in
Product Length 29.5 in
Product Weight 140 lb
Product Width 22 in
Rear Clearance - Heaters 6"
Refrigerant Yes
Series Heaters Universal H-Series Low NOx
Shipping Dimensions 30.6 " x 32.8 " x 33.3 "
Shipping Weight 169 lb
Side Clearance - Heaters 12"
Silent Mode No
Sub Brand N/A
Voltage - Heaters 120/240V
Water Flow Rate Max 125
Water Flow Rate Min 20

Questions & Answers

13 answered question(s)

06/24/26

Q: My pool supplier is looking to sell this unit to me for my above ground 18x33 oval pool. I see here that it is listed as a heater for inground pools. What is the issue with using this for an above ground pool ?

A:
Hi, it's generally related to water flow and the abg pump not having the ability to deliver the proper amount of water to the heater. In addition the installer may have to adjust the water pressure switch since the heater will be below the level...

By Hayward Support

06/24/26

Q: What is the item # for the actual digital display on the Hayward H200FDP? I think that they make the board and display in one.

A:
Hi, FDXLBKP1932 is the bezel/keypad assembly.

By Hayward Support

06/24/26

Q: we are in florida , what should i do in the summer with my propane heaters ? turn gas off ? Turn heater off ? bypass the water ?

A:
Hi, nothing specifically is required when the heater is not in use. They are designed to be connected constantly.

By Hayward Support

06/24/26

Q: What size propane tank should I install for a 200,000 btu propane heater?

A:
You will need a minimum of 300 gallons capacity for the tank

By Hayward Support

06/24/26

Q: I have a propane H200FDP and want to convert it to gas, is there a conversion kit available?

A:
Hi, yes there are conversion kits available for your heater. This conversion should only be done by a licensed gas contractor. You can find a list of Hayward Authorized Service Centers who can do this conversion by clicking on the Dealer Locator tab ...

By Hayward Support

06/24/26

Q: What is the max elevation this unit rated for?

A:
Hi, this heater is rated for a max elevation of 2000' as shipped, but it can be used to 10,100' with the installation of a FDXLHAK1931 high altitude kit. This should only be installed by a licensed gas contractor.

By Hayward Support

06/24/26

Q: We're considering a pool install this year with a propane 200K BTU heater unit. The equipment placement will be in an area that is not the best for our scenery and we're wanting some type of cover fencing. Due to the lower elevation of the pool, it would look much nicer if we can put a metal roof over the equipment as well. I can't quite tell from the manual if that is permitted with the 200K Propane, and if so, what are the required clearances?

A:
Hi, if the heater has a roof over it you will need to vent it like an indoor installation. Contact a local Hayward Authorized Dealer for help with this. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website...

By Hayward Support

06/24/26

Q: can I buy the Natural gas conversion kit from you for my propane Heater? If so, how much are they? I have a H200FDP heater and what is the part number?

A:
Hi, we do not sell direct, but you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

06/24/26

Q: How do you configure for gas entry from the right side of the heater.

A:
Hi, you cannot bring the gas in from the right side. This is an error in our manual. Document control has been notified of the issue and is in the process of removing the reference.

By Hayward Support

06/24/26

Q: Can you switch a propane heater to Natural gas

A:
Yes you can. It should only be done by a qualified gas service provider. For help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com...

By Hayward Support

06/24/26

Q: I have the H200fdp heater,I am getting a fault showing H5. Can help me with this

A:
HI, this is generally a water flow issue, but may also be a temp sensor issue. Contact a local Hayward Authorized Service Center for help with this issue. To find a list of them click on the Dealer Locator tab on the home page of our website Hayward....

By Hayward Support

06/24/26

Q: What pressure regulator is recommended for the Hayward W3H200FDP Universal H-Series 200,000 BTU Propane Pool and Spa Heater for In-Ground Pools and Spas?

A:
Hi, since the gas line to the heater is not part of the actual heater we do not make recommendations on this part. You should consult your gas company for advice on the regulator.

By Hayward Support

06/24/26

Q: How to trouble shot gas heater if no display on the bort or

A:
Hi, due to safety concerns we do not troubleshoot gas heater with consumers. You can find a Hayward Authorized Service Center (HASC) in your area on our website Hayward.com by clicking on the Support Tab, then click Warranty, then in "purpose of...

By Hayward Support

Related Parts

KIT-GAS ORIFICE,LP,(PK 10) H500FDP (Open Line)
KIT-GAS ORIFICE,LP,(PK 10) H500FDP (Open Line)

SKU FDXLBOP1500

HEATFAB APPLIANCE 6" ADAPTER (Open Line)
HEATFAB APPLIANCE 6" ADAPTER (Open Line)

SKU UHXHFA006

FDXLGSV1500N GAS VALVE NAT. KIT FD (Open Line)
FDXLGSV1500N GAS VALVE NAT. KIT FD (Open Line)

SKU FDXLGSV1500N

COMBUSTION BLOWER - H500FD (Open Line)
COMBUSTION BLOWER - H500FD (Open Line)

SKU FDXLBWR1500

Universal H-Series Indoor Vent Kit Matrix HORZ 200 INDR 6" ADPTR (Open Line)
Universal H-Series Indoor Vent Kit Matrix HORZ 200 INDR 6" ADPTR (Open Line)

SKU UHXPOSHZ12006

Universal H-Series Indoor Vent Kit Matrix HORZ 300 INDR 8" ADPTR (Open Line)
Universal H-Series Indoor Vent Kit Matrix HORZ 300 INDR 8" ADPTR (Open Line)

SKU UHXPOSHZ13008

HIGH LIMIT KIT, H500FD HEATERS (Open Line)
HIGH LIMIT KIT, H500FD HEATERS (Open Line)

SKU FDXLHLI1500

FDXLGSV1500P GAS VALVE LP. KIT FD (Open Line)
FDXLGSV1500P GAS VALVE LP. KIT FD (Open Line)

SKU FDXLGSV1500P

FDXLFAD1200 FRONT ACCESS DOOR ASSY H200FD (Open Line)
FDXLFAD1200 FRONT ACCESS DOOR ASSY H200FD (Open Line)

SKU FDXLFAD1200

KIT-BEZEL CONTROL PANEL, 200 (Open Line)
KIT-BEZEL CONTROL PANEL, 200 (Open Line)

SKU FDXLBCP1200

Universal H-Series Indoor Vent Kit Matrix HORZ 250 INDR 4" ADPTR (Open Line)
Universal H-Series Indoor Vent Kit Matrix HORZ 250 INDR 4" ADPTR (Open Line)

SKU UHXPOSHZ12504

KIT NEG VERT 200 INDR 6" ADPTR (Open Line)
KIT NEG VERT 200 INDR 6" ADPTR (Open Line)

SKU UHXNEGVT12006

KIT-GAS ORIFICE,NA,(PK 10) H500FDN (Open Line)
KIT-GAS ORIFICE,NA,(PK 10) H500FDN (Open Line)

SKU FDXLBON1500

REAR ACCESS DOOR ASSY H200FD (Open Line)
REAR ACCESS DOOR ASSY H200FD (Open Line)

SKU FDXLRAD1200

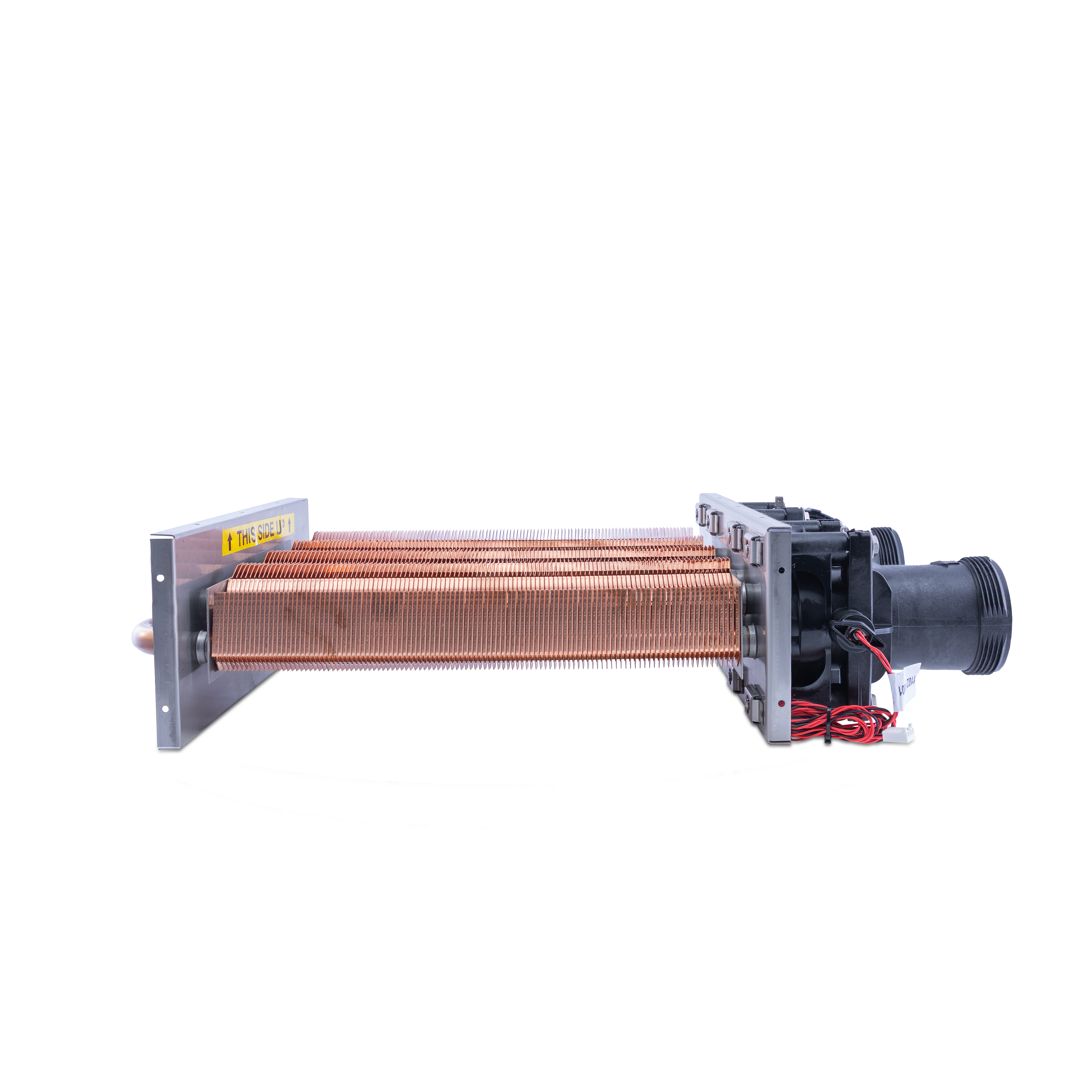

HEAT ECH ASSY - H200FD (Open Line)
