TriStar XE Pump, 2.25 HP

Hayward

SKU: SP3215X20XE

Replacement SKU: VSP32820

Application New Construction, Renovation, Aftermarket
Brand Hayward
Channel Expert Line
DOE Compliant Yes
GTIN 610377434478
Warranty - Labor 1-year
Master Carton Qty 1
Motor Type ODP
Number of Speeds Multi Speed
Warranty - Parts 3-year
Phase Single Phase
Pool Type In Ground
Quick Clean Button No
Remote Mount Display No
Rotatable Display No
Shipping Dimensions 16.3 " x 13.3 " x 30.5 "
Shipping Weight 41.38 lb
Total HP 2.25 HP
Twist Lock No
Voltage at 60 Hz 230/115
WEF 7.2 / 8.7

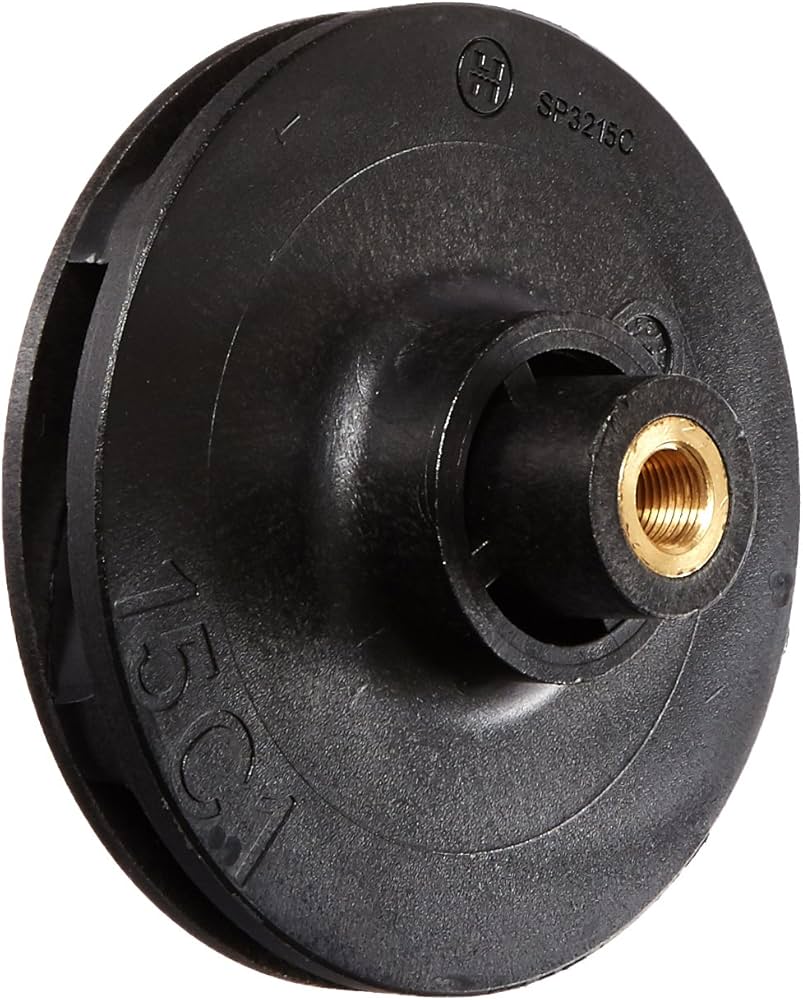

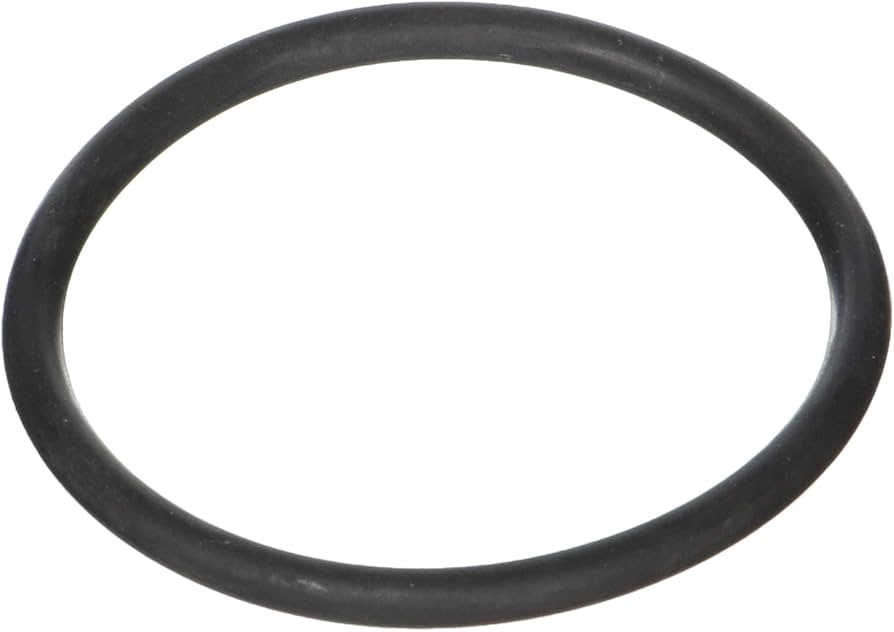

Parts Details

Click on the part number in the diagram to display the details.

Questions & Answers

15 answered question(s)

06/24/26

Q: How do I turn pump off to clean strainer without affecting program?

A:
HI, you can turn off the breaker to the pump. It will hold programming even with a loss of power.

By Hayward Support

06/24/26

Q: Trying to find a dealer in Florida for replacement of aHaywood self priming pump K48M2N111 RPM 3450 single phase 2 hp

A:
Hi, you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

06/24/26

Q: what is the gpm for SP3215X20XE

A:
Hi, the GPM will vary depending on the resistance to flow through the plumbing (TDH) and the speed the pump is set to, but at 40' TDH and full speed this pump will deliver ~137 gpm.

By Hayward Support

06/24/26

Q: I have a Tristar SP32202EE booster pump that has failed after 6 years. Is the model SP322063EEV a direct replacement plug and play that I can use?

A:
Hi, someone from our Technical Service Department will contact you via email.

By Hayward Support

06/24/26

Q: Can you replace 2.7 Hayward with a 2.25 pump motor

A:
Hi, within the same pump family, such as the TriStar you can, but you will need to replace the impeller with one to match the motor as well.

By Hayward Support

06/24/26

Q: Can I run it with 230VAC 50Hz 1P (L1-N) supply ? If not, is there any option to run it with mentioned supply?

A:
None of our US pumps are designed for 50 Hz.

By Hayward Support

06/24/26

Q: Hi have an all Hayward set up. 2.7 VSP Pool pump, 3hp waterfall pump, super II 2hp spa pump with a hayward 72 Sq ft de filter and goldline controls. It's a 45 gallon pool and 10 person spa. After 17 years my spa pump finally died. What is a suitable single speed 2hp pump replacement.

A:
Hi, in July of 2019 the US DOE made changes to their efficiency ratings that made it impossible to sell any single speed pool pump greater than 1 hp. So, you will have to go with a variable speed pump. Something like the TriStar 950 would be a good replacement...

By Hayward Support

06/24/26

Q: how much does this pump cost?

A:
Hi, we do not sell direct, but you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

06/24/26

Q: Does the Tristar XE have automatic Freeze Protection built in?

A:
Hi, this pump does not have freeze protection built in

By Hayward Support

06/24/26

Q: My new pump is not direct wired to the existing on/off switch Do I have to unplug the pump every time I switch the settings (backwash etc.)?

A:
Hi, you need to turn off the pump when you change valve positions to prevent harm to the plumbing-including the valve.

By Hayward Support

06/24/26

Q: What models of iAqualink control boards is the XE compatible with. I can program the speeds in the app and schedule them to run but all i get is "Jandy epump 1 (offline). how do i get it to recognize the VSP is there??

A:
Hi, the XE pumps are primarily designed as stand alone pumps and do not have an interface for automation. You can connect them to automation, but only to turn the pump off and on through a high voltage relay.

By Hayward Support

06/24/26

Q: I need to know what pump speed setting on this model will deliver 62 gallons per minute with 50 feet of Total Dynamic Head at 230 volts

A:
Hi, we don't have a flow curve chart that can give you an exact answer to this question, but it will be somewhere around 2800 RPM. Exact measurements of flow would need to be taken on the pool itself.

By Hayward Support

06/24/26

Q: With respect to the TriStar XE 2.25 HP...What pump speed setting will deliver 62 gallons per minute with 50 feet of Total Dynamic Head and 230 volts?

A:
Hi, you will need to choose 2850 rpm's to get 62 gpm at 50' of TDH.

By Hayward Support

06/24/26

Q: how many gallons per minute does the pump put out

A:
Hi, the TriStar XE pumps are variable speed pumps, so the gallons per minute will be partially determined by the speed of the pump. The total dynamic head of the plumbing system will also affect the output. Total Dynamic Head is a measurement of the ...

By Hayward Support

06/24/26

Q: What are the selectable speed levels?

A:
Hi, someone from our Technical Service Department will be in touch via email soon.

By Hayward Support
