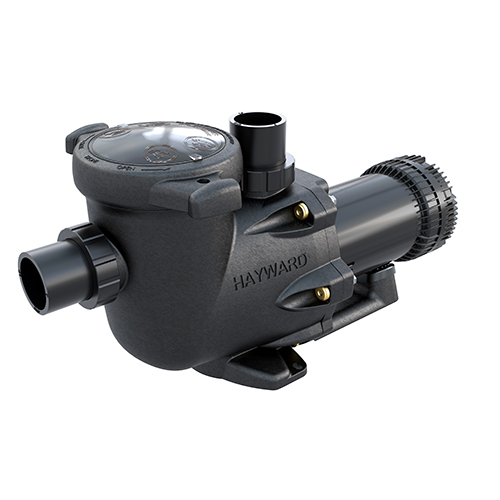

TriStar XE is the best way to install a pump that complies with Dept. of Energy regulations in any new or existing pool.
Features
TriStar® XE Ultra-High Efficiency Pumps are built to deliver maximum energy savings while cutting equipment costs by more than a third. With adjustable speed options, pool owners can customize their pump settings (and savings) without having to pay for more options than they need. And with easy installation and dual-voltage capability, TriStar XE is the best way to install a pump that complies with Dept. of Energy regulations in any new or existing pool.
Features and Benefits
Industry-leading efficiency exceeds DOE benchmarks and performance of many competitive VS pumps
Easily programmable with up to 6 selectable speeds
Easy-access control toggles between speeds at the touch of a button
Dual-voltage capability (230V/115V) for versatile installation
Simple installation includes standard 2" x 2.5" CPVC unions and doesn't require any additional equipment
Brand
Hayward
Channel
Open Line
DOE Compliant
Yes
GTIN
610377449021
Warranty - Labor
None
Master Carton Qty
1
Motor Type
ODP
Number of Speeds
Multi Speed
Warranty - Parts
1-year
Phase
Single Phase
Pool Type
In Ground
Quick Clean Button
No
Remote Mount Display
No
Rotatable Display
No
Shipping Dimensions
16.3 " x 13.3 " x 30.5 "
Shipping Weight
39.8 lb
Total HP
1.85 HP
Twist Lock
No
Voltage at 60 Hz
230/115
WEF
8.5 / 8.4
Wiring Type
Field Wire
Parts Details
Click on the part number in the diagram to display the details.
