Name: SwimClear Single Element Cartridge Filter 200 Sq.Ft.
SKU: C200S
Availability: InStock

Features

The newest addition to the SwimClear family is simply the most efficient single element cartridge filter ever produced. It captures more dirt for superior water clarity while the industry’s lowest head loss can increase energy savings. SwimClear is the easiest to service: the Easy-Lok™ ring design, comfort grip handles, and lowest lift height provide fast element cleaning and replacement. For energy savings, reliable performance, and the ultimate in service ease, the choice is crystal clear: SwimClear.

Features and Benefits

Captures more dirt for superior water clarity without the need of any supplemental media
Industry-leading hydraulic efficiency allows the pump to run at a lower speed or less time, which increases energy savings
Easy-Lok ring design allows quick access to internal components for quick and simple maintenance
Ergonomic grip handles provide multiple handling locations without touching fiberglass for easy installation and maintenance
Lowest body height to lift elements for convenient and quick cleaning and replacement
Recessed pressure gauge and manual air relief enables user to place head assembly upside down on pool pad, protecting the seal from contamination
2" x 2 1/2" union connections makes installation and servicing fast and easy

EXPERT LINE products can only be purchased through your local pool professional or in-store. Exclusions, other terms, and conditions may apply.
3+ Year Parts and Labor Warranties*

*When sold by a Hayward Rewards® partner. Exclusions, other terms and conditions may apply.

NSF Certified

NSF’s comprehensive inspection, testing and certification services ensure our products comply with all major state and provincial health codes, as well as model building and construction codes.

Application	New Construction, Renovation, Aftermarket
Brand	Hayward
Cartridge	Yes
Channel	Expert Line
Design Flow Rate	120
Drain Port Size (Inches)	1.5
Effective Filtration Area	200 ft.²
Filter Type	Cartridge
Footprint	18 x 18 INCH
GTIN	610377269476
Warranty - Labor	1-year
Master Carton Qty	1
Number of Filter Elements	1
Pallet Qty	8
Warranty - Parts	3-year
Pool Type	In Ground
Pressure Gauge	Yes
Product Dimensions	38.75 " x 18.25 " x 18.25 "
Product Height	38.75 in
Product Length	18.25 in
Product Weight	40 lb
Product Width	18.25 in
Public Design Flow Rate	75 GPM
Quantity	1
Residential Design Flow Rate	120
Series Filters	SwimClear Single Element
Shipping Dimensions	40.1 " x 18.7 " x 18.7 "
Shipping Weight	40 lb
Side Clearance - Filters	18"
Sub Brand	N/A
Tank Type	GFR
Turnover - 10 Hours	45,000 GPM
Turnover - 8 Hours	36,000 GPM
Valve Included	N/A

Questions & Answers

13 answered question(s)

Lisa Weston Verified User

06/24/26

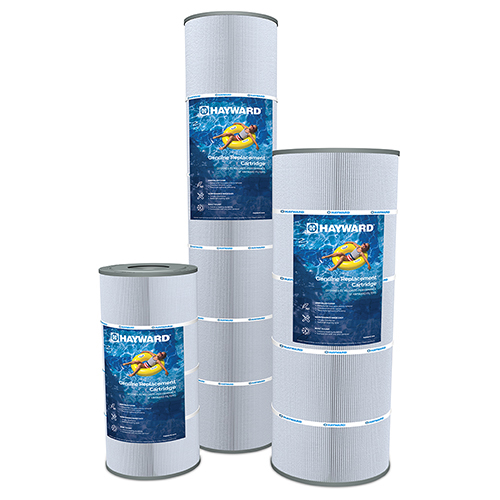

Q: We have a Hayward Pool Pump System. Do you sell filter cartridges for C200S (CX200XRE) Hayward pool equipment? If not, do you know where I can find one or order one from. If so, how much are they? Thank you!

A:

We do not sell direct, but you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Mrs chapelin Verified User

06/24/26

Q: Hello, where can I find this part or only the base ? My zip code is 33463 . I need help please

A:

Hi, you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Ralph Forbes Verified User

06/24/26

Q: how do i find replcement collar for this pool filter

A:

Hi, contact a local Hayward Authorized Dealer in your area for help with this. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Fernando Verified User

06/24/26

Q: Debrief on Passing the Hayward Filter S200 I vacuumed the swimming pool, and all the dust and debris were removed. The pool remained clean until the next day when debris appeared again. I am 99% sure that the debris is coming from the filter.

A:

It sounds as if you may have a cracked lateral assembly. For help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Billy Gent Verified User

06/24/26

Q: The red release handle does not disengage to open my filter. Options?

A:

Hi, for help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

David Verified User

06/24/26

Q: Hello, Lately my salt water generator union screen has been getting clogged with small debris which should be getting caught by the filter. I have a Hayward C150s swimclear cartridge filter using a Cryspool filter from amazon. The filter itself seems ok and is only a few months old, i dont see any tears or holes when inspecting it. So I'm thinking maybe the filter isnt seated correctly? Or there is a leak where the bottom of the filter meets the diffuser assembly? I see water coming out of the bottom when i fill it with a hose, is that a sign of a problem? I removed the diffuser assembly and it also seems ok but not sure what I should be looking for.

A:

Hi, beyond recommending you only use a Hayward replacement cartridge, this would be very difficult to diagnose remotely. We suggest contacting a local Hayward Authorized Service Center for assistance. You can find a list of them by clicking on the Dealer...

By Hayward Support

Debi Verified User

06/24/26

Q: How many gallons does this treat. My pool is 14x22 3' to 5'

A:

HI, the C200S cartridge filter should work fine for a pool of this size, but bather load and environmental conditions play a major part in the filtration requirements for a pool. We suggest you contact a local Hayward Authorized Dealer for help in sizing...

By Hayward Support

Joseph DAGOSTINO Verified User

06/24/26

Q: I have a 2 hp pump, and a 52" 24 round above ground pool. What is the right cartridge filter to purchase?

A:

HI, this question is best answered by a local Hayward Authorized Dealer. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com.

By Hayward Support

Scott Verified User

06/24/26

Q: Why is this picture not the SwimClear C200S filter? Can’t find the single element SwimClear filters anywhere

A:

Hi, thank you for pointing this out to us! I have alerted our web team to get the correct picture on the page.

By Hayward Support

Scott Verified User

06/24/26

Q: Why is the picture on your website of a multi cartridge swim clear filter instead of the single cartridge filter

A:

Hi, thank you for bringing this to our attention. I will alert the correct department and we will get this corrected.

By Hayward Support

David Verified User

06/24/26

Q: Is the diffuser in the C100S filter and C200S filters the same? Or is the diffuser in the C200S longer? Same question for the bottom filter housing. Is it the same for both filter heads?

A:

Hi, the diffuser for the C100S and the C200S are different lengths to accommodate the different lengths of the cartridge. The bottom filter housing is the same for both.

By Hayward Support

David Verified User

06/24/26

Q: What is the circumference of the S-100 and S-200 filters

A:

HI, the circumference of the C100S and C200S are the same. Approx. 56.5"

By Hayward Support

Ricardo Morales Verified User

06/24/26

Q: What cartridge filter size I need for an inground 15,000 gals. Pool.

A:

Hi, someone from our Technical Service Department will be in touch via email soon.

By Hayward Support
