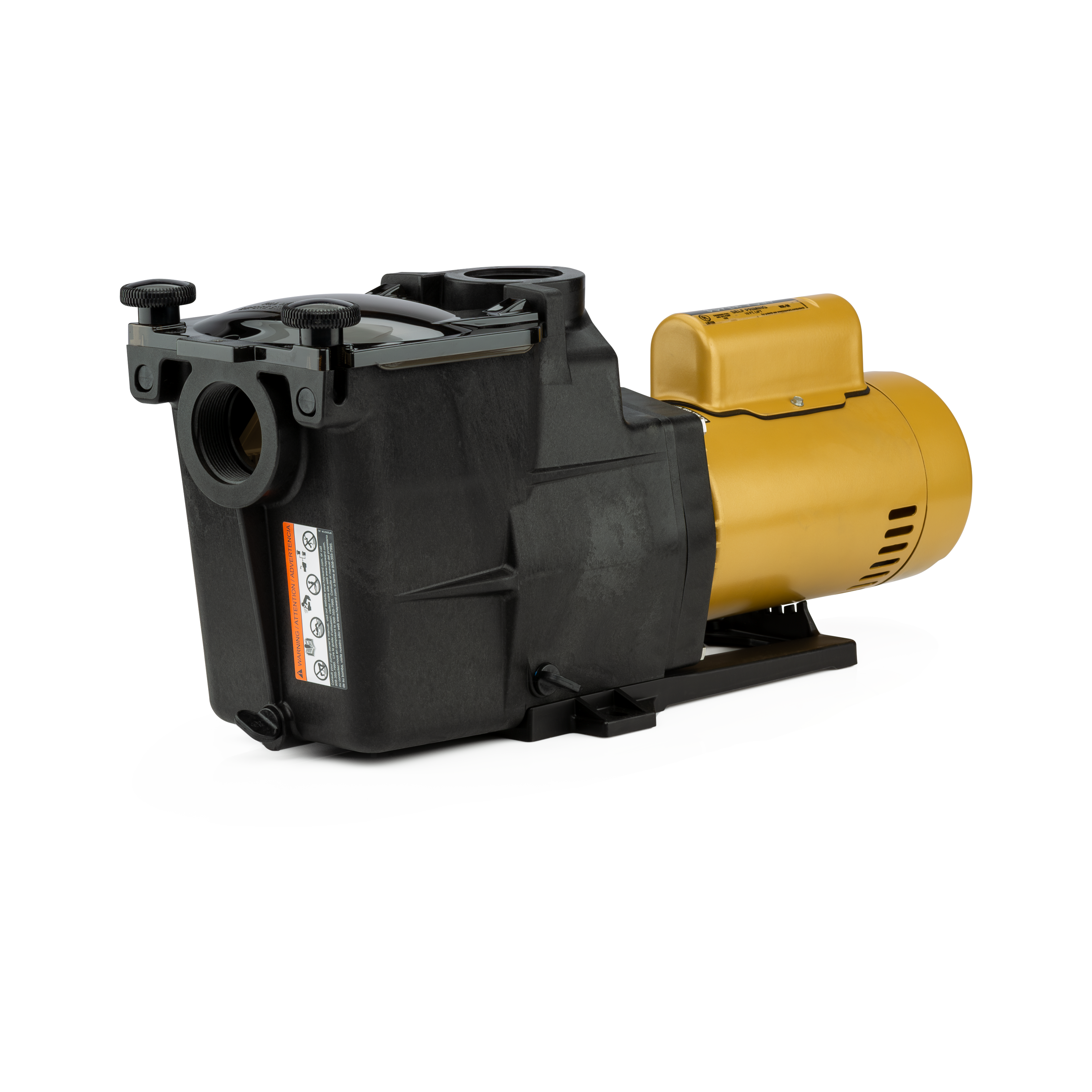

Super Pump High Efficiency Pump, 0.85 HP (Open Line)

Hayward

SKU: W3SP2605X7

The Super Pump has all the quality features you expect from Hayward® – Efficient, Dependable and Proven.

Features

The Super Pump has all the quality features you expect from Hayward® – Efficient, Dependable and Proven. For aftermarket and new pool installations, the Super Pump sets the standard of excellence and value.

Features and Benefits

  • Heavy-duty, high-performance motor for quieter, cooler operation
  • Exclusive swing-away hand knobs for easier strainer cover removal: no tools required, no loose parts, no clamps
  • 110-cubic-inch basket has extra leaf-holding capacity; load-extender ribbing ensures free flowing operation
  • See-through strainer cover lets you see when the basket needs to be cleaned
Brand Hayward
Channel Open Line
DOE Compliant Yes
GTIN 610377386838
Warranty - Labor None
Master Carton Qty 1
Motor Type ODP
Number of Speeds Single Speed
Warranty - Parts 1-year
Phase Single Phase
Pool Type In Ground
Quick Clean Button No
Remote Mount Display No
Rotatable Display No
Shipping Dimensions 11.8 " x 10.6 " x 30.1 "
Shipping Weight 32 lb
Total HP 0.85 HP
Twist Lock No
Voltage at 60 Hz 208-230/115
WEF 3.9
Wiring Type Field Wire
Parts Details

Click on the part number in the diagram to display the details.

Questions & Answers

7 answered question(s)

06/24/26

Q: Where is this pump made? W3SP2605X7

A:
Clemmons, NC

By Hayward Support

06/24/26

Q: I have a 3/4 hp self priming Super Pump (model: C48J2N131B3). Is it okay to install this pump 50 ft away from the pool. It will also be installed roughly 4 ft below the water level, and the plumbing will be one line that is basically straight with only two or maybe three 90deg elbows. Here is some other info from the pump: Serial: 27614J2 Volts: 115/230 SP1605Z1MBK Thank you.

A:
It's possible that this will be alright, but we suggest consulting with a local Hayward Dealer or service center. They can come out and do an appraisal of the site to give you the best outcome. For help with this contact a local Hayward Authorized...

By Hayward Support

06/24/26

Q: The original pump din not want GFCI protection. This pump manual suggest it should have this protection . Should the circuit breaker be changed to a GFCI type?

A:
Hi, per the National Electric Code all pool pumps must be GFCI protected.

By Hayward Support

06/24/26

Q: I need to replace Hayward Pump/Motor. Serial Number: 10318J2Ml060020775 Model: C48J2N131B1 3/4hp 115/230v Please tell me where I can go to a retailer for purchase. Thank you.

A:
Hi, you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

06/24/26

Q: Does the pump motor need to be protected from the weather?

A:
Hi, our pumps are designed for installation in the open with no weather protection.

By Hayward Support

06/24/26

Q: Where to get a base for W3SP2605x7

A:
Hi, we do not sell direct. You can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com The part you need is SPX2600G1

By Hayward Support

06/24/26

Q: pump w3sp`2605x7, does it have 1.5 inch ports or 2 inch ports. i am looking for a 1.50 ports. what is the correct part number. FYI some sites gives 2 inch ports and others say 1.5 inc

A:
Hi, we no longer make pumps with 1 1/2" ports, but this pump will include reducing bushings to accommodate older plumbing.

By Hayward Support
