StarClear Cartridge Filter 50 Sq.Ft.
Hayward
SKU: C500
Hayward Star-Clear™ cartridge filters provide crystal clear water and have extra cleaning capacity to accommodate pools and spas of all types and sizes.
Features
Hayward’s® StarClear cartridge filters provide crystal clear water and have extra cleaning capacity to accommodate pools and spas of all types and sizes. For replacement or new pool installations, StarClear sets the standard of excellence and value.
Features and Benefits
- Single locking knob securely fastens head to filter tank, eliminating bolts or clamps
- Attractive, durable filter head may be rotated to conveniently position pressure gauge and manual air relief
- Injection-molded filter tank for dependable, corrosion-free performance

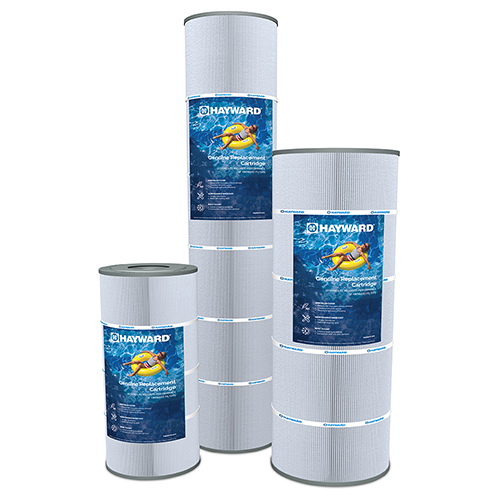

- Extra-large cartridge element with precision engineered core provides extra-strength and maximum flow
- Elevated, filtered water collector and debris sump prevents accidental by-pass of heavy debris to pool or spa when cartridge is removed for cleaning
- 1 1⁄2" or 2" FIP, or 2" SKT connections for plumbing versatility
- 1⁄2" FIP filter drain for fast draining of elevated spas and tubs. Also accepts a standard spigot valve

- EXPERT LINE products can only be purchased through your local pool professional or in-store. Exclusions, other terms, and conditions may apply.
- 3+ Year Parts and Labor Warranties*
*When sold by a Hayward Rewards® partner. Exclusions, other terms and conditions may apply.
| Brand | Hayward |
|---|---|
| Cartridge | Yes |
| Channel | Expert Line |
| Design Flow Rate | 50 |
| Drain Port Size (Inches) | 1/2 FIP |
| Effective Filtration Area | 50 ft.² |
| Filter Type | Cartridge |
| Footprint | 11 x 11 INCH |
| GTIN | 610377020435 |
| Labor Warranty | None |
| Master Carton Qty | 1 |
| Number of Filter Elements | 1 |
| Pallet Qty | 32 |
| Parts Warranty | 2-year |
| Pool Type | Above Ground, In Ground |
| Pressure Gauge | Yes |
| Product Dimensions | 29.5 " x 10.5 " x 10.5 " |
| Product Height | 29.5 in |
| Product Length | 10.5 in |
| Product Weight | 17 lb |
| Product Width | 10.5 in |
| Public Design Flow Rate | 18 GPM |
| Quantity | 1 |
| Residential Design Flow Rate | 50 |
| Series Filters | StarClear |
| Shipping Dimensions | 28.6 " x 10.8 " x 10.8 " |
| Shipping Weight | 16 lb |
| Side Clearance - Filters | 18" |
| Tank Type | GFR |
| Turnover - 10 Hours | 11,250 GPM |
| Turnover - 8 Hours | 9,000 GPM |
| Valve Included | N/A |
Parts Details
Click on the part number in the diagram to display the details.
