Integrated Series - Features and Benefits
- Integral photocell and timer allow light fixtures to operate manually, automatically, or on a timer
- Automatic operation turns lights on at dusk and off at dawn
- TR12PC-INT-100 Timer Operation: turns lights on at dusk and turns them off four hours, six hours, or eight hours after dusk
- TR12SS-INT-120/TR12SS-INT-200/TR15SS-INT-300 Timer Operation: turns lights on at dusk and turns them off one to nine hours after dusk
- Resettable circuit breaker that prevents overloads and short circuits
- Plug-in ready
- 6-foot, grounded, water resistant, heavy gauge power cord

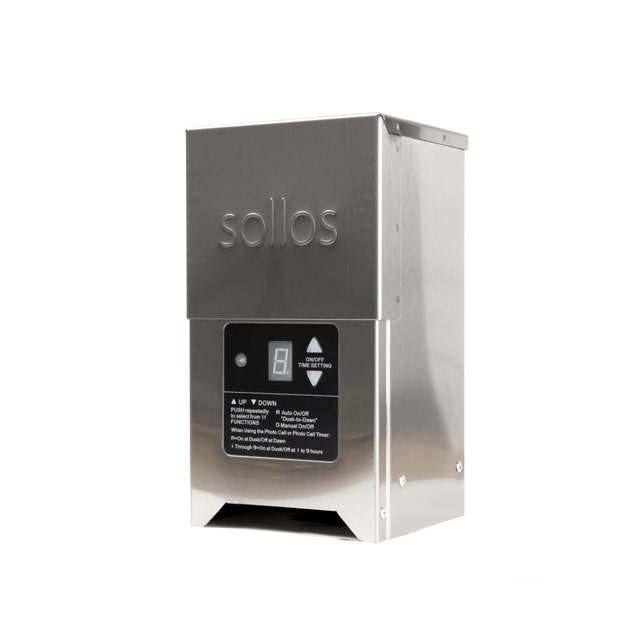

Commercial - Features and Benefits
- Brushed 304 grade stainless steel
- Removable hinged cover for easy access
- Tool-less bottom access plate locks into place when cover is closed
- Bottom panel contains one large 1 1/2" conduit inlet and four 3/4" knockouts for lead exit
- Mounting brackets located on top and bottom of the console
- Input Voltage: 120V
- Magnetic circuit breaker for every 300W circuit
- Output Voltage Taps: 12-15 Volts
- In-line primary overload protection prevents system damage with auto thermal shut-off
- In-line secondary magnetic breaker prevents short circuit protection with reset
- Extra-large terminal block for convenient low voltage cable connections
