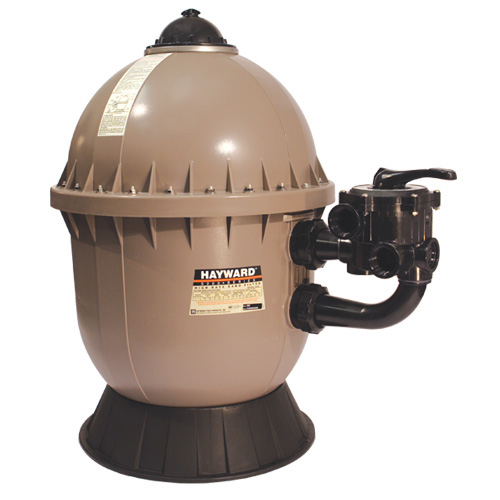

ProSeries 23" Sand Filter - Top Mount (1 1⁄2" VariFlo Valve Included) (Open Line)
Hayward
SKU: W3S200
The S200 filter combines high-rate filtration performance with the durability of a corrosion proof, heavy duty, injection molded tank.
Replacement SKU: W3S210S
Features
The S200 filter combines high-rate filtration performance with the durability of a corrosion proof, heavy duty, injection molded tank.
Features and Benefits
- Durable 6” threaded inspection cover provides convenient access to top of filter
- Corrosion-proof, heavy-duty filter tank injection molded of tough, durable ABS for dependable, all-weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Extra strength, bolted center flange securely fastens tank and allows for maximum access to all internal components
- 6-position Hayward VariFlo control valve with easy-to-use lever-action
- Integral sight glass lets you see when backwash cycle is completed
- Precision engineered umbrella-fold self-cleaning laterals for balanced flow and backwashing, and easy serviceability.
| Backwash Flow Rate | 44 GPM |
|---|---|
| Brand | Hayward |
| Cartridge | No |
| Channel | Open Line |
| Design Flow Rate | 44 |
| Drain Port Size (Inches) | 1.5 |
| Effective Filtration Area | 2.2 ft.² |
| Filter Type | Sand |
| Footprint | 20-1/2 x 20-1/2" |
| GTIN | 610377387712 |
| Warranty - Labor | None |
| Master Carton Qty | 1 |
| Maximum Working Pressure | 50 PSI |
| Number of Filter Elements | N/A |
| Pallet Qty | 8 |
| Warranty - Parts | 1-year |
| Pool Type | In Ground |
| Pressure Gauge | Yes |
| Product Dimensions | 32 " x 20.5 " x 20.5 " |
| Product Height | 32 in |
| Product Length | 20.5 in |
| Product Weight | 46 lb |
| Product Width | 20.5 in |
| Public Design Flow Rate | 44 GPM |
| Residential Design Flow Rate | 44 |
| Sand Capacity | 200 lbs. |
| Series Filters | ProSeries |
| Shipping Dimensions | 39.3 " x 24.1 " x 24.1 " |
| Shipping Weight | 56 lb |
| Side Clearance - Filters | 18" |
| Tank Type | Polymeric Resin |
| Turnover - 10 Hours | 26,400 GPM |
| Turnover - 8 Hours | 21,120 GPM |
| Valve Included | 1 1/2" VariFlo |
| Vertical Clearance - Filters | 18" |
Click on the part number in the diagram to display the details.
Questions & Answers
14 answered question(s)
Please log in to submit a question.
Q: We are in process of changing out the lateral assembly but noticed that the top elbow assembly is cracked. Can you please suggest a replacement part SKU?
By Hayward Support
Q: Hi there. We have a s-200 sandbag and like to replace it. Our pool is a 20000 gallon in ground pool. Can we replace with a top mount valve one, like S210T top mount filter? Current one is a side mount filter. Please recommend the best fit in your view. Thanks in advance!
By Hayward Support
Q: Do you offer a direct replacement filter for the S200. I do not need the valve just the sand tank? If yes can you give me a part or product number that my dealer can order?
By Hayward Support
Q: I have an s-200 high rate sand filter & am getting sand back into the pool when the filter is started after being backwashed or any time the filter is shut off. I want to replace the insides of the filter with part S-200-MA if available. If not what do you recommend replacing the part with.
By Hayward Support
Q: I need to replace the multi-port. Can you provide me with the model number?
By Hayward Support
Q: How much?
By Hayward Support
Q: I currently have an inground 24,000 gallon pool with a Pentair 1.5 hp variable speed pump and the Hayward S 200 sand filter. I’m moving my equipment and would like to replace the sand filter. No current issues, would like to replace with the same or similar since current sand filter seems pretty old. I understand the S 200 is discontinued. What model would you recommend?
By Hayward Support
Q: We have this filter and it has a crack in it. Can we repair the crack?
By Hayward Support
Q: Is this still available
By Hayward Support
Q: 24,000 gallon in ground pool. S200 sand filter system with 1.5 hp pump was installed in 2019. Filter has done a good job until this year. Having problem getting pool water clean. Chemicals in pool are within tolerance. Sand was installed when filter was new. Should I change filter sand?
By Hayward Support
Q: I have a W3S200. When the pool was opened it was discovered that the drain plug is broken. Is there a way to fix it or do I need a new filter?
By Hayward Support
Q: Do you still sell this item, and what is the cost?
By Hayward Support
Q: My S200 is leaking from the bottom, can I remove the lateral assembly to inspect? Any suggestions on sealing a leak PROBABLY associated with the drain pipe. THANKS
By Hayward Support
Q: This filter is listed as a direct replacement for my Old S200 High Rate sand. The ports on my tank are 2" inside diameter. I have a Variflow valve SP0710X32NP. The pipes going into the sand tank measure 2" outside Diameter. What are the exact diameters for the Tank and included valve? I am hoping to not have to replace the valve as it was done a couple years ago. Thanks David
By Hayward Support
