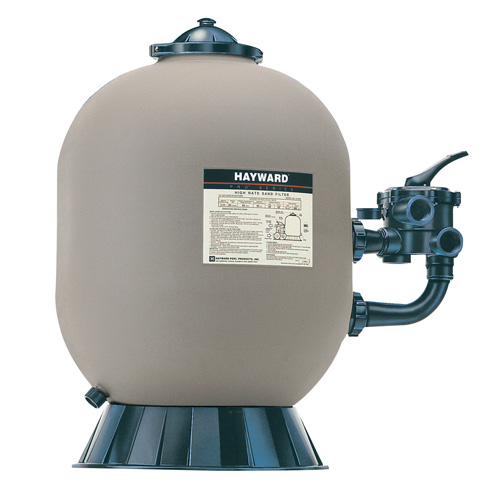

ProSeries 21" Sand Filter - Side Mount (1 1/2" VariFlo Valve Included) (Open Line)
Hayward
SKU: W3S210S
ProSeries top-mount and side-mount sand filters provide long lasting performance.
Features
ProSeries top-mount and side-mount sand filters utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for totally balanced backwashing and long lasting performance.
Features and Benefits
- Durable corrosion proof materials for dependable all weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Top-mount models are available with 7-position or 6-position VariFlo™ control valve
- Side-mount models are available with 6-position VariFlo™ or 2-position slide valve
| Application | New Construction, Renovation, Aftermarket |
|---|---|
| Backwash Flow Rate | 44 GPM |
| Brand | Hayward |
| Cartridge | No |
| Channel | Open Line |
| Design Flow Rate | 44 |
| Drain Port Size (Inches) | 1.5 |
| Effective Filtration Area | 2.2 ft.² |
| Filter Type | Sand |
| Footprint | 20-1/2 x 20-1/2" |
| GTIN | 610377401371 |
| Warranty - Labor | None |
| Master Carton Qty | 1 |
| Maximum Working Pressure | 50 PSI |
| Number of Filter Elements | N/A |
| Pallet Qty | 8 |
| Warranty - Parts | 1-year |
| Pool Type | In Ground |
| Pressure Gauge | Yes |
| Product Dimensions | 32 " x 20.5 " x 20.5 " |
| Product Height | 32 in |
| Product Length | 20.5 in |
| Product Weight | 46 lb |
| Product Width | 20.5 in |
| Public Design Flow Rate | 44 GPM |
| Residential Design Flow Rate | 44 |
| Sand Capacity | 200 lbs. |
| Series Filters | ProSeries |
| Shipping Dimensions | 39.5 " x 21.2 " x 21.2 " |
| Shipping Weight | 49.4 lb |
| Side Clearance - Filters | 18" |
| Tank Type | Polymeric Resin |
| Turnover - 10 Hours | 26,400 GPM |
| Turnover - 8 Hours | 21,120 GPM |
| Valve Included | 1 1/2" VariFlo |
| Vertical Clearance - Filters | 18" |
Click on the part number in the diagram to display the details.
Questions & Answers
4 answered question(s)
Please log in to submit a question.
Q: Hi can I replace a s210s filter with an ac 246gs filter?
By Hayward Support
Q: Will this work with a 1hp super pump?
By Hayward Support
Q: I am looking to replace my W3S200 with this filter. Can you tell me if this is good replacement model? Thanks!
By Hayward Support
Q: What model sand filter for 18,000 gal pool?
By Hayward Support
