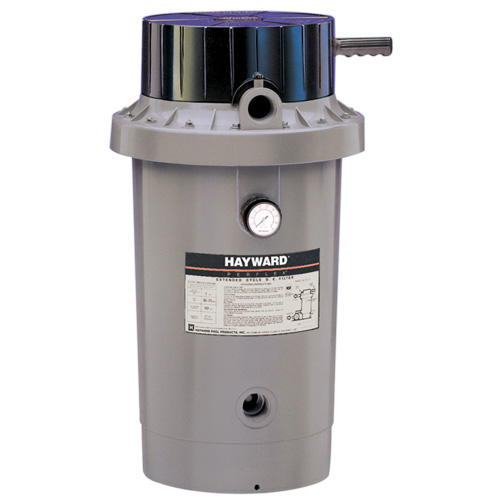

Name: Perflex Extended-Cycle DE Filter 40 Sq.Ft. (Open Line)
SKU: W3EC75A
Availability: InStock

Features

Perflex Extended-Cycle DE filters provide crystal clear, sparkling water at an economical price. Proven over many years, Perflex has set the standard in swimming pool filtration by incorporating the patented Flex-Tube™ design in combination with DE, the most effective filter media available. The result is superior water clarity, extended filter cleaning cycles — and no backwashing required.

Features and Benefits

Easy access clamp assembly
Cleans pools fast — removes even the smallest particles the first time through
Uses DE (diatomaceous earth), the most effective filter media available
Patented Flex-Tube system efficiently reuses DE powder and dirt mixture to form fresh cleaning surfaces
Exclusive bump handle activates the Flex-Tubes, causing them to instantly purge themselves of dirt and powder
Uniquely designed to expel any air that may be present in the system through the filtered water returning to the pool
Combination diffuser and lower mixing chamber specifically designed to produce a uniformed coating of DE on the Flex-Tubes

Brand	Hayward
Cartridge	No
Channel	Open Line
Design Flow Rate	100
Effective Filtration Area	40 ft.²
Filter Type	DE
GTIN	610377387866
Warranty - Labor	None
Master Carton Qty	1
Pallet Qty	12
Warranty - Parts	1-year
Pool Type	In Ground
Pressure Gauge	No
Product Dimensions	31 " x 21 " x 21 "
Product Height	31 in
Product Length	21 in
Product Weight	45 lb
Product Width	21 in
Public Design Flow Rate	80 GPM
Residential Design Flow Rate	100
Series Filters	Perflex
Shipping Dimensions	31.9 " x 17.4 " x 19.4 "
Shipping Weight	45 lb
Turnover - 10 Hours	48,000 GPM
Turnover - 8 Hours	38,400 GPM
Number of Filter Elements	1
Valve Included	N/A
D.E. Capacity	7 lbs.

Questions & Answers

9 answered question(s)

Thomas Shim Verified User

06/24/26

Q: Is there any difference between the W3EC65a and the EC65a DE filters?

A:

The W3 version is available online and comes with a 1 year parts only warranty. The non W3 version can only be purchased through a Hayward Authorized Retail Store, and comes with a 3 years parts 1 year labor warranty.

By Hayward Support

Becki Landry Alford Verified User

06/24/26

Q: JMJ My pool has a major leak and we have had the filter shut off for a few weeks. I need instructions for shutting the filter off indefinitely until we solve the problem please call me with instructions or email me instructions 9853514126.

A:

Hi, you should contact a local Hayward Authorized Service Center for help with this. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Paul Verified User

06/24/26

Q: I'm looking to replace my "vintage" 1993 Hayward EC-75 DE inground pool filter. The bump handle of my current unit is on the left as you face the unit. On your website it (Model #W3EC75A) shows the bump handle on the right. I'm assuming the handle is "field" reversible - installable, correct? Also is W3EC75A the correct replacement for my EC-75?

A:

Hi, that would be the correct replacement.

By Hayward Support

Chris Verified User

06/24/26

Q: What horsepower for flow rate pump do I need for filter W3EC75A? Thanks

A:

Hi, someone from our Tech Support Group will be in touch via email.

By Hayward Support

Frederick Haberl Verified User

06/24/26

Q: What is availability and for lower housing -grandson ran into it with lawn mower -is it serviceable to

A:

Hi, the body is available for this filter, but you may find that the price of the body is enough to make purchasing a new filter the right choice. The body part number is ECX11184AT

By Hayward Support

GiGi Verified User

06/24/26

Q: I need a new screw on my filter that releases the pressure. Can I purchase that screw from you?

A:

HI, we do not sell direct, but through a network of distributors and dealers. You can find a dealer near you by clicking on the Dealer Locator tab in the upper right portion of the home page of our website Hayward.com The part number you will need for...

By Hayward Support

Sandra K Verified User

06/24/26

Q: DO YOU HAVE A PARTS MANUAL i CAN DOWNLOAD?

A:

Hi, someone from our Technical Service Department will be in touch via email soon.

By Hayward Support

Joe Verified User

06/24/26

Q: First why does the specs say there is no pressure gauge? I currently have a ec75 filter and I would like to know if the current pipes will match up with the w3ec75a? I also noticed that the info says you do not have to backwash. How does the debris that enters the filter get discharged. Thank you for your help. Please respond to my email Josephc1952@gmail.com.

A:

Hi, someone from our Technical Service Department will be in touch via email soon.

By Hayward Support

MIGUEL Verified User

06/24/26

Q: HOLA, COMO PUEDO LIMPIAR LOS TUBOS FLEXIBLES? DESPUES DE 10 AÑOS AUNQUE CAMBIE LA ARENA DE DITOMEAS LA PRESIÓN ES ELEVADA

A:

Hi, someone from our Technical Service Department will be in touch via email

By Hayward Support
