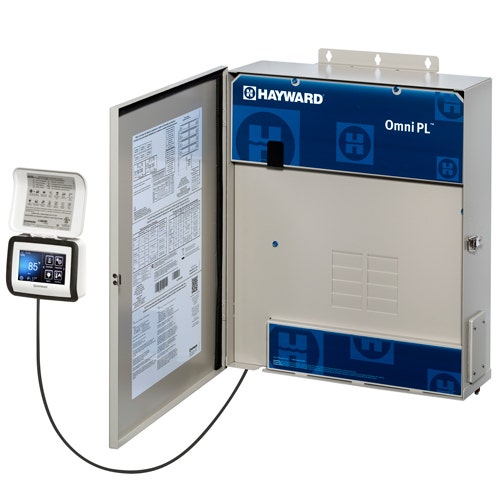

OmniPL Smart Pool and Spa Control

Hayward

SKU: HLBPRO4SW

Unmatched value in automation for new pools and spas. OmniPL leverages the OmniLogic® platform and easy-to-use app, where you can select the level of control to suit your needs.

Replacement SKU: HLPRO4SW

Features

This premium solution simplifies pool ownership by integrating salt chlorination options with your automation.

Features and Benefits

  • Ease of Installation. External control display equipped with 15-foot cord
  • Modular Expandability. Equipped with 4 relays with flexibility to upgrade. Increase to 6 relays with (2)-HLRELAY, increase to 8 relays with additional (2)-HL485RELAY
  • OmniDirect Mode. Pair ColorLogic LED lighting and water features with Hayward automation to get additional color options, dimming control and more
  • Salt Compatibility. HLBPRO4SW is ready for salt once you add a Hayward Salt Cell. HLBPLUS4W comes bundled with a TCell940 for pools up to 40,000 gallons
  • Pump Control. Full control of up to 8 Variable Speed Pumps without using any relays
  • Compatible with Omni® Remotes: HLWRELESS, HLWALLMOUNT and HLSPASIDE
  • OmniLogic app allows you to monitor, set schedules and control your entire backyard at home or on the go (only available on W versions)
  • Effortless Voice Assisted Device Control. Works with popular voice control systems like Amazon® Alexa®
  • Expert Line™ products are only available through your local pool professional
  • EXPERT LINE products can only be purchased through your local pool professional or in-store.  Exclusions, other terms, and conditions may apply.
  • 3+ Year Parts and Labor Warranties*

*When sold by a Hayward Rewards® partner. Exclusions, other terms and conditions may apply.

Application New Construction, Renovation
Brand Hayward
Channel Expert Line
GTIN 610377403245
Warranty - Labor 1-year
Master Carton Qty 1
Warranty - Parts 3-year
Pool Type In Ground
Product Dimensions 11.5 " x 24.6 " x 34.4 "
Product Height 11.5 in
Product Length 34.4 in
Product Weight 61.1 lb
Product Width 24.6 in
Quantity 1
Shipping Dimensions 11.5 " x 24.6 " x 34.4 "
Shipping Weight 61.1 lb
Series Automation N/A

Questions & Answers

14 answered question(s)

06/24/26

Q: Where is the model # on Hayward Omni smart pool and spa control?

A:
It should be on the label located inside the door.

By Hayward Support

06/24/26

Q: How do I change colors of my lights?

A:
Here is a link to the manual. It has information on how to change the lights. https://hayward.com/media/akeneo_connector/asset_files/0/9/092765_RevB_9ec2.pdf

By Hayward Support

06/24/26

Q: will OmniPL upgrade control Jandy heater? Will it work with the app on a phone? Thanks

A:
If the heater uses 2 low voltage wires for bypass operation, then yes. The OmniPL upgrade kit will connect to a wifi network, and can be used with the OmniLogic app.

By Hayward Support

06/24/26

Q: Can I run low another brand low voltage light system with the OmniPl

A:
Yes, you can.

By Hayward Support

06/24/26

Q: HOW DO I ADD A HEATER TO MY TOUCH SCREEN, IT WAS ASKING ME FOR A PASSWORD WHEN I TRY

A:
The password is your MSP ID.

By Hayward Support

06/24/26

Q: Does the power for the heater need to come from the Hayward panel or I can make a separate switch and just use a communication wire for the control?

A:
No, it does not need to be powered by the Omni panel.

By Hayward Support

06/24/26

Q: Are there. More pool light colors available?

A:
Here is a link for information on all colors and shows available with our UCL lighting. https://hayward.com/media/akeneo_connector/asset_files/U/n/Universal_ColorLogic_Pool___Spa_Lights_Overview_9af4.pdf

By Hayward Support

06/24/26

Q: I want to hook a 50 amp hot tub feed off this will that work as long as panel is fed with 100 amps plus our pool equipment will be on it to

A:
No, it will not. Our relays can only support 30 amps.

By Hayward Support

06/24/26

Q: Can you extend the 15 ft cord ondisllag

A:
Yes, we offer a 100ft extension cable. Part number HLXPL485100

By Hayward Support

06/24/26

Q: Is it possible to run 2 heaters 2 pumps 1 230v spa blower 3 pool lights 1 spa light off Omni pl with 8 breaker spaces

A:
Yes, you can.

By Hayward Support

06/24/26

Q: System still down? Can’t get it to work

A:
It is back online.

By Hayward Support

06/24/26

Q: what is the "site name" in the registration of my Omni Logic PL

A:
You can enter whatever you'd like. For example, "Steve's pool"

By Hayward Support

06/24/26

Q: what do I put in the "Site Name' for registration of my new omni logic PL

A:
Whatever you'd like. For example, "Steve's pool"

By Hayward Support

06/24/26

Q: Can you provide an installation video for the Omni PL I believe it’s model number HLBPR04SW or HLBPLSUS4W

A:
Hi, someone from our Technical Service Department will be in touch via email soon.

By Hayward Support
