Q: What is the new replacement part number for a MicroClear DE6000 fiberglass filter clamp (belly band) assembly. I believe the obsolete part number is DEX2400J.
A:
Hi, this part is obsolete with no replacement.
By Hayward Support
J
JJSVerified User
06/24/26
Q: Hi - I have a Swim Clear Cartridge filter C3020, what Clamp System is compatible with C3020? Thanks
A:

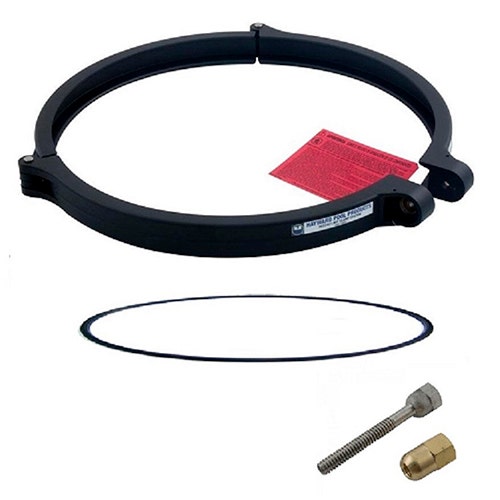

DEX2421JKIT
We do not sell directly, but you can find a local Hayward Authorized Dealer by clicking on the Dealer Locator tab on our home page of our website, Hayward.com
Link to dealer locator: https://hayward.com/dealerlocator
By Hayward Support
M
Maureen RatelVerified User
06/24/26
Q: The Hayward DE6020 collar has gotten corroded. What part do I need to replace it?
A:
DEX2421JKIT
By Hayward Support
J
JimVerified User
06/24/26
Q: Good afternoon.
I need to replace clamp assembly and seal on my swim clear don’t know model number.
I have a diagram of the parts with reference number which say dex24211jkit
Dex2422z2
The picture on your website doesn’t match mine.
The filter is over 20 years old
A:
Hi, if your filter is over 20 years old the clamp system changed, and what you are seeing in the diagram is the newer clamp. The older one is no longer available.
Please use our website's dealer locator to find the closest Hayward Authorized Service...
Hi, if your filter is over 20 years old the clamp system changed, and what you are seeing in the diagram is the newer clamp. The older one is no longer available.
Please use our website's dealer locator to find the closest Hayward Authorized Service Center(HASC). A HASC may be needed to address this issue.
Link to dealer locator: https://hayward.com/dealerlocator
By Hayward Support
B
BobVerified User
06/24/26
Q: I have a DE 6000 filter and the brass clamp threaded nut has stripped. What is the replacement part for this bolt and/ or do i have to purchase the entire clamp assembly? If so, what is the assembly part number? Thanks.
A:
DEX2421J2
By Hayward Support
J
Jerry HerbVerified User
06/24/26
Q: I have a DE6020 Pro Grid. I just purchased the new clamp DEX2421JKIT. does the metal reinforced seal DE2422Z2 replace the rubber gasket/seal on the lower body in the channel for the gasket?
A:
For help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com
By Hayward Support
R
RyanVerified User
06/24/26
Q: I just need the o-ring/seal for this DEX2421JKIT clamp system. Do I need to buy the whole clamp with it as well? Seems like I should just be able to get o-ring.
A:
Hi, the seal is part # DEX2422Z2 and it can be purchased separately.
By Hayward Support
B
Betty MeltonVerified User
06/24/26
Q: I need a manual for FOR DEX2421JKIT CLAMP SYSTEM
A:
Hi, there is no manual available for this replacement part.
For help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com
By Hayward Support
K
Kevin WeberVerified User
06/24/26
Q: Does this clamp DEX2421JKIT fit a c-4000 super star clear filtration system. Our clamp broke and I am lookin for a replacement but they all say discontinued.
A:
Hi, it does not. If you need a clamp for this filter you will need to replace the filter.
By Hayward Support
K
KentVerified User
06/24/26
Q: I have aclamp assembly number DEX2420J-will DEX2421J take its place and will it work on my filter made prior to 2007-y email address saver@att.net-my tel: 317-894-9838 - thanking you in advance for any information - Kent
A:
Hi, the DEX2421JKIT will work on Pro Grid filters dating back to 2001.
By Hayward Support
K
Kelly JohnsonVerified User
06/24/26
Q: I have a Hayward DE4820. I need a clamp for the filter, with spring and bolt included. Is this the correct part I need?
