AquaRite S3 Omni Upgrade Kit
Hayward
SKU: AQRS3OMNIKIT

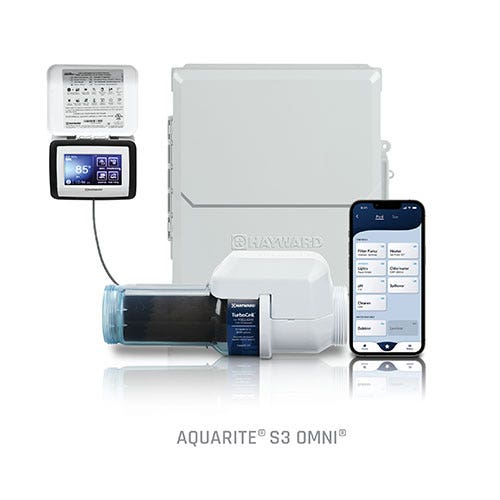

AquaRite® S3 Omni takes water quality to the next level, combining industry-leading performance with fully integrated pool and spa automation.
Features
AquaRite® S3 Omni takes water quality to the next level, combining industry-leading performance with fully integrated pool and spa automation. With S3 Omni, you gain full control of your backyard experience via the intuitive OmniLogic® app, or voice control devices. Manage ColorLogic® lighting with OmniDirect Mode™, or monitor water chemistry with optional pH and ORP sensing. Expand anytime with smart relays, Wi-Fi, acid feed systems, and more.
Features and Benefits
- LCD color display for built-in control of chlorine levels, heater and variable-speed pump*
- Clear TurboCell salt cell for easy inspection
- Operates over a broad range of salt levels, 800-8000 ppm
- Pool cover detect capabilities
- Auto voltage select for easier installation
- Full control of virtually any pool or spa feature via the external control panel, OmniLogic® app, or voice control devices**
- Valve ports to automatically switch to Spa mode (GVA-24 automatic actuators sold separately)
- ColorLogic lighting control with OmniDirect Mode™
- pH and ORP sensing capabilities (probes sold separately)
- Expand at any time with easy-to-add accessories from smart relays, pH sensing, Wi-Fi connectivity and more
- Configurable for future upgrades
- Control and set schedules for 3x variable-speed pumps, 2x heaters, and/or 2 high power relays
- Capable of controlling an acid feed tank
NOTE: *Single-speed pump control via Smart Relay, HLH485RELAY, sold separately, **Voice control devices are not included

- EXPERT LINE products can only be purchased through your local pool professional or in-store. Exclusions, other terms, and conditions may apply.
- 3+ Year Parts and Labor Warranties*
*When sold by a Hayward Rewards® partner. Exclusions, other terms and conditions may apply.
| Application | Renovation, Aftermarket |
|---|---|
| Brand | Hayward |
| Channel | Expert Line |
| GTIN | 610377414678 |
| Warranty - Labor | 1-year |
| Master Carton Qty | 1 |
| Pallet Qty | 128 |
| Warranty - Parts | 3-year |
| Pool Type | In Ground |
| Product Dimensions | 5.9 " x 9.2 " x 12.1 " |
| Product Height | 5.9 in |
| Product Length | 12.1 in |
| Product Weight | 3.6 lb |
| Product Width | 9.2 in |
| Quantity | 1 |
| Shipping Dimensions | 5.9 " x 9.2 " x 12.1 " |
| Shipping Weight | 3.6 lb |
| Sub Brand | N/A |
| Series Water Quality | AquaRite S3 Omni |
| Salt (lbs/day) | N/A |
| Water Quality Type | Salt Chlorinators |
| Twist Lock | No |
Manuals
- AquaRite S3 Omni Series Upgrade Kit Owner's Manual (M092768RevB) (opens in new tab)
- AquaRite S3 Omni Series Upgrade Kit Owner's Manual (M092787RevB) French (opens in new tab)
- AQRS3 Omni Series Installation Manual (1011734RevB) (opens in new tab)
- AQRS3 Omni Series Operation Manual (1011736RevB) (opens in new tab)
- AQRS3 Omni Series Installation Manual - French (1011735RevB) (opens in new tab)
- AQRS3 Omni Series Operation Manual - French (1011737RevB) (opens in new tab)
- AQR S3 Omni Upgrade Kit Quick Start Guide (M092778RevA) (opens in new tab)
- AQR S3 Omni Quick Start Guide (M092788RevA) French (opens in new tab)
Questions & Answers
11 answered question(s)
Please log in to submit a question.
Q: Hi , I recently had the omni aqua rite s3 i stalled but im having issues with it. For starters the salt count is always 2800 on the screen. I cant connect the system to wifi because i dont have a strong enough wifi signal. The app says i have notifications. They are as follows ….. Temp sensor open air sensor 1 upgrade available Flow sensor No water flow flowsensor I need help. Please!
By Hayward Support
Q: Hello. I have the regular S3 salt system but would like to monitor salt levels via Wi-Fi on my phone. Is this upgrade what I would need to do so? Are there any additional parts required to achieve my goal?
By Hayward Support
Q: I have aquarite. 3S 1000 gallons pool and I would like upgrade to Omni. How much cost the system and I can update ?
By Hayward Support
Q: What upgrade kit should I use to replace my AQL-PS-4 automation and chlorination system?
By Hayward Support
Q: I would like to purchase AquaRite S3 Omni Upgrade Kit, from where can I buy this?
By Hayward Support
Q: Does this support two pumps?
By Hayward Support
Q: Who can I contact to purchase this kit? I’ve tried the dealer locator in this website and none of them have this kit.
By Hayward Support
Q: I have the s3 but need the Omni upgrade. When is it going to be available? It’s been out of stock for over 6 months
By Hayward Support
Q: I have an Aqua Rite, control panel for my automatic Chlorinator that comes on for 20 seconds then goes off. It was installed in 2007 and the board probably needs replacing. Do you have a replacement board for serial # 939001D control panel?
By Hayward Support
Q: How can I get this in Louisiana? All the pool companies I've called says that they can't get this upgrade.
By Hayward Support
Q: So my pool company is telling me its getting close to having to replace this Omni kit. How long are they supposed to last? thank you Jenny
By Hayward Support
