AquaPlus - 4 Relays, 3 Valves, 1 Heater, Solar, T-Cell
Hayward
SKU: PL-PLUS

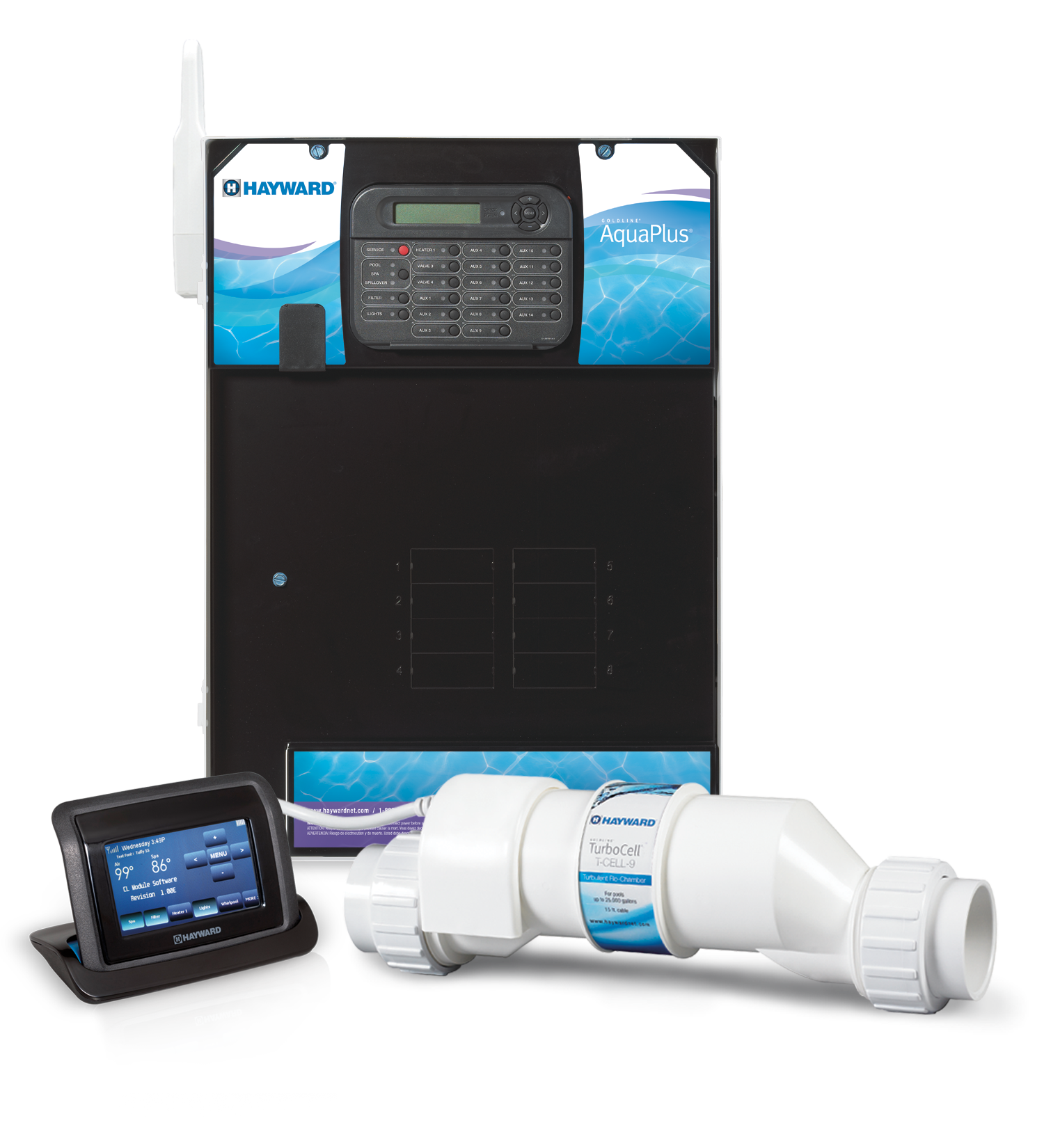

AquaPlus simplifies and enhances pool and spa ownership by combining control and salt chlorination into one easy-to-install, easy-to-operate package
Features
With AquaPlus, programming essential functions for maximum performance, effectiveness and cost-efficiency is a snap. It lets pool owners set filtration and temperature schedules: steady all week, increasing during busy weekends, or cutting back on weekdays when activity is limited. They can even control other backyard features, including patio and landscape lighting, water features and firepits. And with a variety of remote controllers, they can program and manage it all from practically anywhere; indoors, poolside or even in the pool. With AquaPlus, pool owners can automate water chemistry with our integrated Sense and Dispense® option. Sense and Dispense automatically senses chlorine and pH levels and dispenses chlorine via a salt chlorination system or a liquid chlorine feed tank, and controls pH delivering the most consistent water quality possible.
Features and Benefits
- Controls up to 4 relays, 3 valve actuators, 1 solar and 1 conventional heater
- Variable speed pump control
- Uses salt chlorination to deliver fresh chlorine when needed
- Super Chlorinate function
- Displays time, day, pool and spa temperature and ambient air
- Built-in 100A subpanel
- Built-in keypad for complete operation and programming
- Fully programmable automatic control of every output
- Easy to use buttons for manual control
- Sense and Dispense – fully integrated chemistry automation
- Continuously senses water quality and pH levels and dynamically dispenses what the water needs
- Dispenses Carbon Dioxide (CO2) or Muriatic Acid to control pH
- AquaConnect® Remote Pool Management offers four ways to manage pool, spa and backyard control functions: Apps, Wi-Fi, Web, and select Home Automation Serial Interfaces
- Enjoy 24/7 access to the AquaConnect platform through all internet and mobile device portals, as well as a serial option for integration with existing home automation systems
- Optional Remote: AquaPod 2.0 touchscreen, waterproof, fully programmable handheld remote

- EXPERT LINE products can only be purchased through your local pool professional or in-store. Exclusions, other terms, and conditions may apply.
- 3+ Year Parts and Labor Warranties*
*When sold by a Hayward Rewards® partner. Exclusions, other terms and conditions may apply.
| Application | New Construction |
|---|---|
| Brand | Hayward |
| Channel | Expert Line |
| GTIN | 761418009404 |
| Warranty - Labor | 1-year |
| Master Carton Qty | 1 |
| Warranty - Parts | 3-year |
| Pool Type | In Ground |
| Product Dimensions | 10 " x 19.8 " x 24.3 " |
| Product Height | 10 in |
| Product Length | 24.3 in |
| Product Weight | 37.7 lb |
| Product Width | 19.8 in |
| Quantity | 1 |
| Shipping Dimensions | 10 " x 20 " x 25 " |
| Shipping Weight | 41.5 lb |
| Series Automation | AquaPlus |
Questions & Answers
5 answered question(s)
Please log in to submit a question.
Q: What is the replacement unit for this system?
By Hayward Support
Q: My system reads 3800 but my pool company says it is 3400. I take and have my water tested once a week and it is always about 400 off? How can i cahnge or correct the reading to make it correct
By Hayward Support
Q: I keep getting an error message saying Communication Error. The display software revision 3.12
By Hayward Support
Q: The system indicates low salt when it is 3200. It turns off the chlorinator. How to I get it to recognize the correct level?
By Hayward Support
Q: What are the metal enclosure dimensions? I can’t find it in the manual. Waiting for mine to arrive and need to plan it’s location in layout.
By Hayward Support
